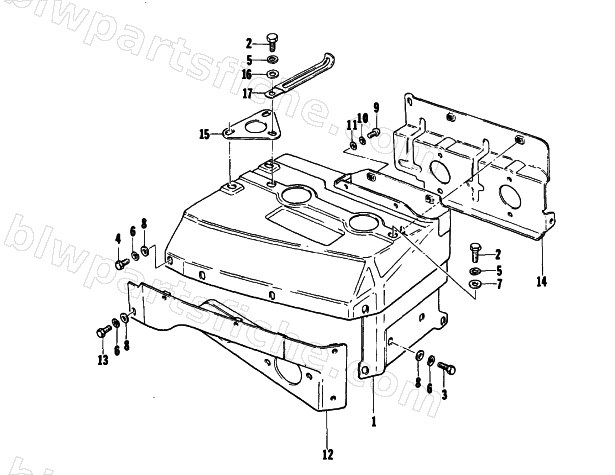

1976 Arctic Cat CHEETAH 440 — CYLINDER COWLING
1976 CHEETAH 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3000-083 | BOLT, 6MM X 16MM.. | 1 | $0.12 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 3423-204 | WASHER | 1 | $1.95 | |
| 8 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 10 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 11 | 3000-260 | WASHER,5MM | 1 | $0.26 | |
| 12 | 3002-150 | COWLING VENT-FRONT | 1 | $5.95 | |
| 14 | 3002-151 | COWLING VENT-REAR | 1 | $4.95 | |
| 15 | 3002-148 | BRKT,FAN CASE | 1 | $17.95 | |
| 16 | 3000-133 | WASHER, FLAT 8MM.. | 1 | $0.15 |
