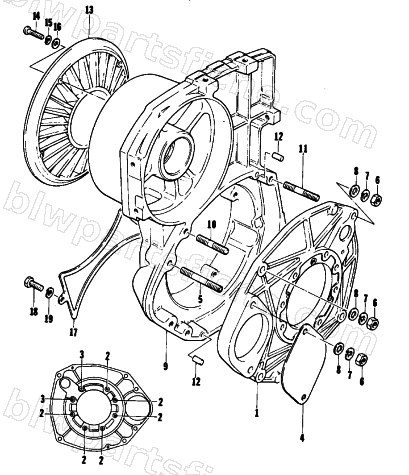

1976 Arctic Cat CHEETAH 500 — FAN HOUSING
1976 CHEETAH 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3007-566 | SCREW | 1 | $1.95 | |
| 3 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 6 | 3007-416 | NUT | 1 | $2.75 | |
| 7 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 8 | 3423-204 | WASHER | 1 | $1.95 | |
| 10 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 11 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 12 | 3000-268 | PIN,DOWEL | 1 | $2.95 | |
| 15 | 3007-847 | WASHER,LOCK-4MM | 1 | $3.16 | |
| 16 | 3423-902 | WASHER SUB T/M 4MM | 1 | $3.16 | |
| 17 | 3002-152 | COVER,FAN BELT | 1 | $5.95 | |
| 18 | 3000-083 | BOLT, 6MM X 16MM.. | 1 | $0.12 | |
| 19 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 |
