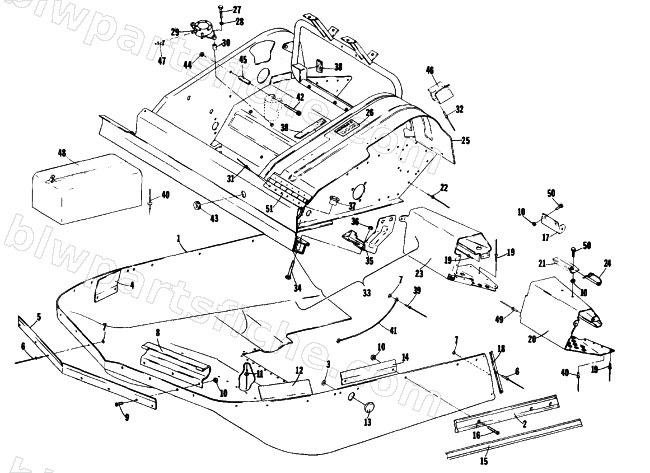

1976 Arctic Cat CROSS COUNTRY CAT — BELLY PAN AND FRONT FRAME
1976 CROSS COUNTRY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 7 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 9 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 19 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 22 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 29 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 31 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 32 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 36 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 37 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 40 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 41 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 44 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 46 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 47 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 49 | 0623-156 | RIVET,CHERRY SSPQ66 | 1 | $0.95 | |
| 50 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 |
