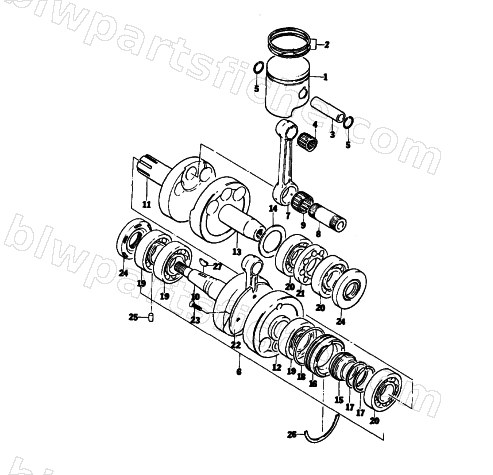

1976 Arctic Cat CROSS COUNTRY CAT — PISTON AND CRANKSHAFT
1976 CROSS COUNTRY CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-825 | RING SET 340-370 F/C | 1 | $100.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 13 | 3002-255 | CRANKSHAFT, LH | 1 | $104.95 | |
| 14 | 3002-025 | WASHER,M34X47X1 | 1 | $2.75 | |
| 17 | 3003-112 | RING, CENTER | 1 | $23.39 | |
| 18 | 3004-818 | O-RING | 1 | $4.40 | |
| 19 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 21 | 3002-193 | SPACER,CRANKSHAFT-LH | 1 | $101.95 | |
| 23 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 24 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 25 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 26 | 3003-736 | C-RING,CRANKSHAFT,M65 | 1 | $13.95 | |
| 27 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
