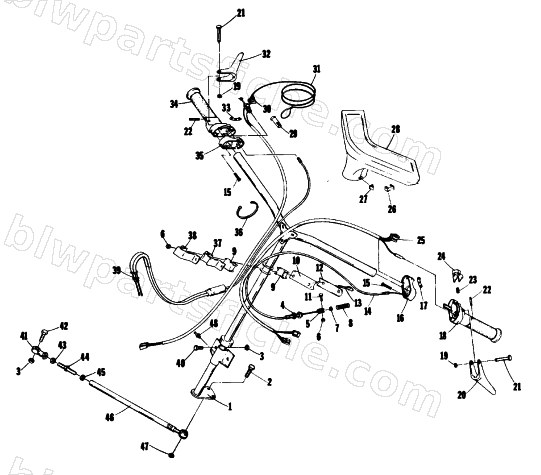

STEERING
1976 EL TIGRE 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 5 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 6 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0123-407 | SPRING,COMPRESSION 5/16IDX3 | 1 | $0.45 | |
| 11 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 12 | 0105-203 | PLATE, BACKING | 1 | $10.95 | |
| 18 | 0109-610 | HANDLE CONTROL-PARK BRAKE | 1 | $27.95 | |
| 19 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 20 | 0109-609 | LEVER,CONTROL | 1 | $20.63 | |
| 21 | 1623-828 | PIN, 1/4D X 1 5/8 | 1 | $12.35 | |
| 22 | 8070-286 | PIN,SPRING-5/32 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 23 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 29 | 0109-636 | SLEEVE STOP SWITCH | 1 | $5.95 | |
| 32 | 0109-487 | LEVER,THROTTLE | 1 | $26.95 | |
| 35 | 0109-485 | CAP,THROTTLE CONTROL | 1 | $26.95 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 39 | 0187-037 | CABLE,THROTTLE-VM32 | 1 | $140.95 | |
| 40 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 41 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 43 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 44 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 45 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 46 | 0105-230 | TIE ROD,W/END | 1 | $121.95 | |
| 47 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 48 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 |
