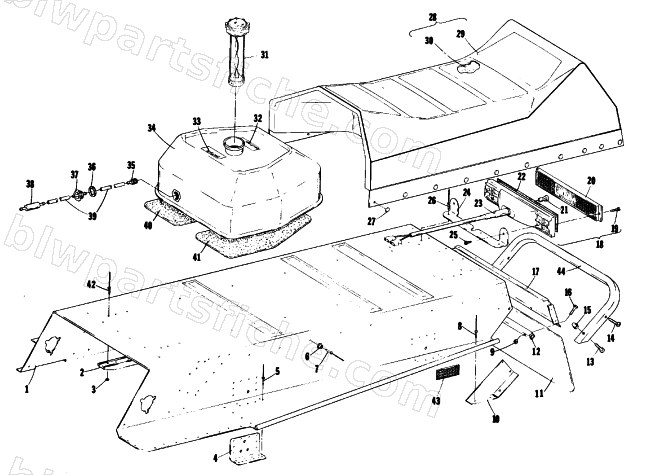

1976 Arctic Cat JAG 275 — BODY, GAS TANK, TAILLIGHT & SEAT
1976 JAG 275
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0123-671 | SCREW,MACH TR HD 5/16X1-1/4 CHM | 1 | $0.15 | |
| 19 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0106-638 | GASKET MAT'L-5FT LENGTH | 1 | $5.59 | |
| 25 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 26 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 27 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 31 | 0109-362 | CAP & GAUGE ASS'Y - GAS TANK | 1 | $79.95 | |
| 38 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 39 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 42 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 |
