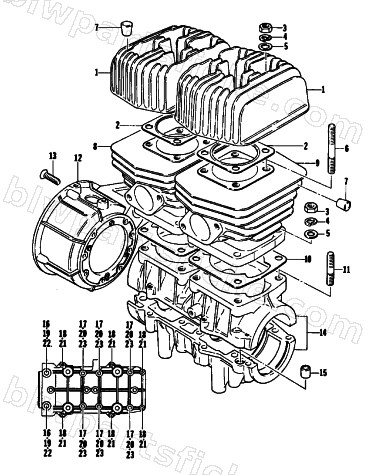

1976 Arctic Cat JAG 340 — CRANKCASE AND CYLINDER
1976 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-537 | GASKET,HEAD | 1 | $42.95 | |
| 3 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 4 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 5 | 3007-410 | WASHER | 1 | $2.75 | |
| 6 | 3002-009 | STUD BOLT M10 X 45 | 1 | $4.95 | |
| 7 | 3002-055 | PAD CYLINDER HEAD | 1 | $4.95 | |
| 9 | 3002-061 | CYLINDER LH AA34F1 | 1 | $856.95 | |
| 10 | 3002-064 | GASKET,CYL BASE | 1 | $13.95 | |
| 11 | 3002-008 | STUD BOLT M10 X 30 | 1 | $2.95 | |
| 13 | 3007-566 | SCREW | 1 | $1.95 | |
| 15 | 3002-027 | DOWEL,PIN M13 | 1 | $6.95 | |
| 18 | 3007-841 | BOLT,HEX M6-1X45 | 1 | $3.44 | |
| 20 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 21 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 23 | 3423-204 | WASHER | 1 | $1.95 |
