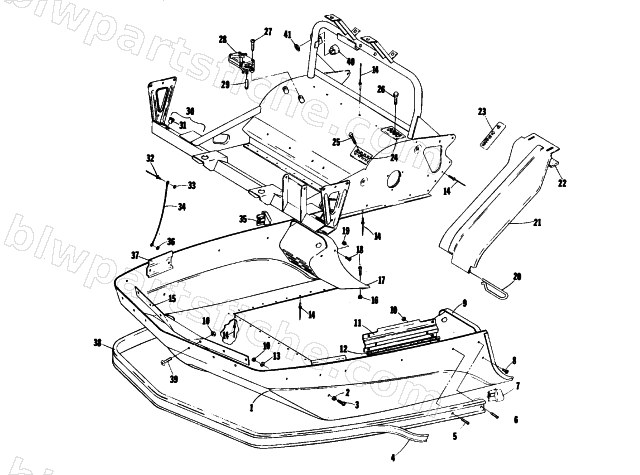

1976 Arctic Cat PANTHER 500 — BELLY PAN AND FRONT FRAME
1976 PANTHER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 14 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 16 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8008-579 | SCREW,MACH-SLTH 1/4-20X5/8 Z&Y | 1 | $0.95 | |
| 20 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 25 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 26 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 31 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 33 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 34 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 36 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 39 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 40 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 41 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 |
