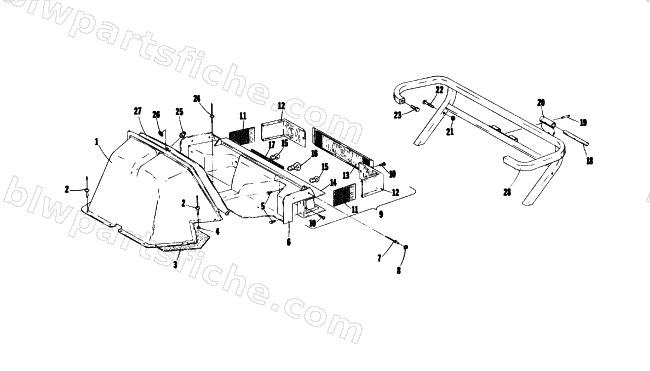

1976 Arctic Cat PANTHER 500 — REAR SHROUD AND BUMPER
1976 PANTHER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-303 | SHROUD,TOOLBOX-BLK-ASSY | 1 | $128.95 | |
| 2 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 7 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 10 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 12 | 0116-410 | LENS,TAILLIGHT | 1 | $6.95 | |
| 15 | 0109-445 | BULB,TAILLIGHT GE68 | 1 | $1.09 | |
| 16 | 0109-446 | BULB BRAKE LIGHT GE1142 | 1 | $15.11 | |
| 17 | 0106-638 | GASKET MAT'L-5FT LENGTH | 1 | $5.59 | |
| 19 | 8070-220 | PIN,SPRING-1/8 X 3/4 SLOTTED P&O | 1 | $0.85 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 24 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 26 | 0123-662 | NUT PUSH .490 DIA STUD | 1 | $1.95 |
