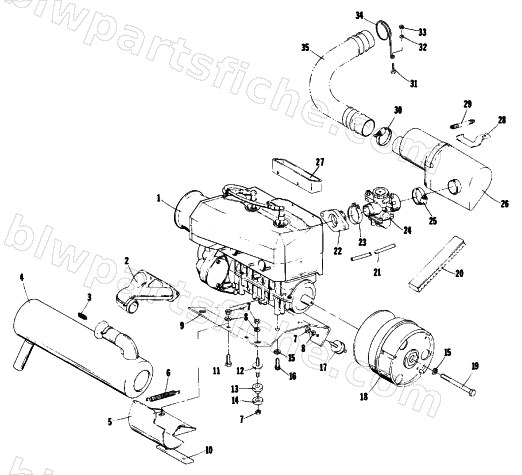

ENGINE AND RELATED PARTS
1977 CHEETAH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 6 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 7 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 14 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 15 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 17 | 0108-174 | MOUNT,MOTOR-BONDED | 1 | $20.95 | |
| 19 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 20 | 0227-019 | BELT, DRIVE | 1 | $62.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 23 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 30 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 31 | 8008-580 | SCREW,MACH-SLTH 1/4-20X.75 G2 Z&Y | 1 | $0.68 | |
| 32 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
