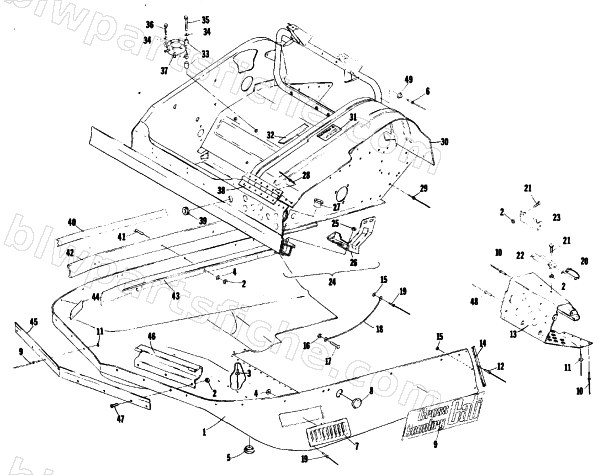

1977 Arctic Cat CROSS COUNTRY CAT — BELLY PAN AND FRONT FRAME
1977 CROSS COUNTRY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 7 | 0106-626 | VENT,CARBURETOR | 1 | $3.95 | |
| 8 | 0116-604 | PLUG BELLY PAN 1-1/2 | 1 | $1.45 | |
| 10 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 17 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 | |
| 21 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 25 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 27 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 28 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 29 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 33 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 34 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 36 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 37 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 41 | 0123-190 | SCREW,MACH FT HD 1/4-20X1-3/8 | 1 | $0.45 | |
| 47 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 48 | 0623-156 | RIVET,CHERRY SSPQ66 | 1 | $0.95 | |
| 49 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 |
