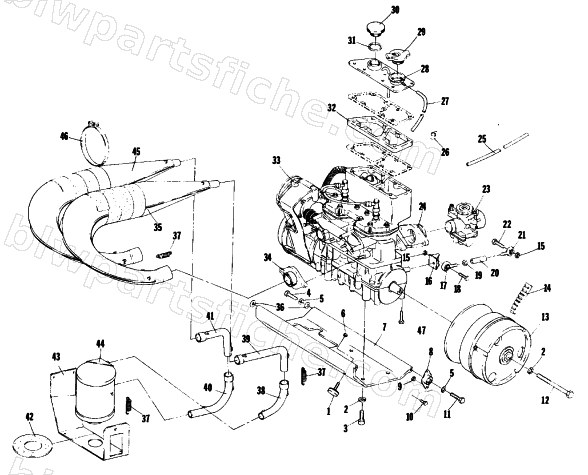

1977 Arctic Cat CROSS COUNTRY CAT — ENGINE AND RELATED PARTS
1977 CROSS COUNTRY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 5 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 6 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 12 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 17 | 0105-235 | BALL JOINT TIE ROD 3/8-24 LH | 1 | $116.95 | |
| 18 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 19 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 21 | 0105-234 | BALL JOINT,TIE ROD,RH | 1 | $52.95 | |
| 22 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 24 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 27 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 37 | 0112-426 | SPRING,EXTENSION | 1 | $20.95 |
