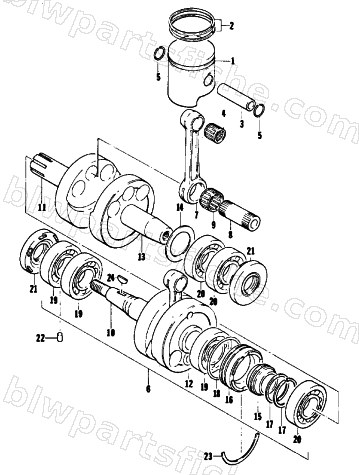

PISTON AND CRANKSHAFT
1977 EL TIGRE 4000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-289 | PISTON,440CC | 1 | $154.95 | |
| 2 | 3002-742 | RING SET,440F/C | 1 | $100.95 | |
| 3 | 3002-227 | PIN,PISTON | 1 | $40.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 6 | 3002-720 | CRANKSHAFT ASSY... | 1 | $1,846.95 | |
| 7 | 3002-166 | ROD CONNECTING | 1 | $277.95 | |
| 8 | 3002-173 | PIN,CRANK | 1 | $73.95 | |
| 9 | 3003-170 | BEARING, ROD,ROLLER,M22,28,15.8 | 1 | $43.95 | |
| 14 | 3002-025 | WASHER,M34X47X1 | 1 | $2.75 | |
| 17 | 3003-112 | RING, CENTER | 1 | $23.39 | |
| 18 | 3004-818 | O-RING | 1 | $4.40 | |
| 19 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 21 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 22 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 23 | 3003-736 | C-RING,CRANKSHAFT,M65 | 1 | $13.95 | |
| 24 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
