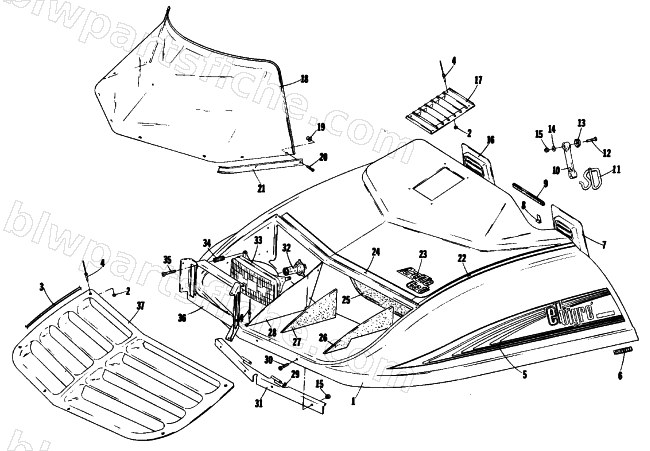

1977 Arctic Cat EL TIGRE 5000 — HOOD
1977 EL TIGRE 5000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 0220-013 | TRIM,PLASTIC-HOOD-59.5 | 1 | $24.95 | |
| 10 | 0116-827 | STRAP,LATCH-HOOD | 1 | $14.95 | |
| 11 | 0116-376 | LATCH,HOOD | 1 | $31.95 | |
| 13 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 22 | 0211-590 | DECAL,HOOD-TOP RIGHT | 1 | $18.95 | |
| 22 | 0211-591 | DECAL,HOOD-TOP LEFT | 1 | $18.95 | |
| 23 | 0211-564 | DECAL,ARCTIC CAT | 1 | $13.95 | |
| 24 | 0211-589 | DECAL,HOOD-TOP CENTER | 1 | $18.95 | |
| 25 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 29 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 30 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 32 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 34 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 |
