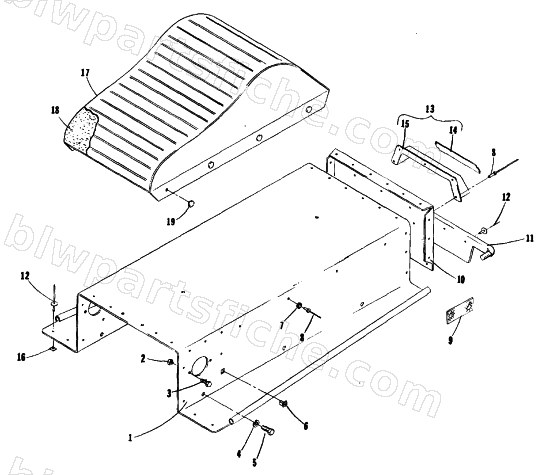

1977 Arctic Cat KITTY CAT — SEAT AND TUNNEL
1977 KITTY CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-462 | BODY-FORMED | 1 | $814.95 | |
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 4 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 6 | 0123-534 | NUT,EXPANSION 8-18 | 1 | $0.40 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 12 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 13 | 0300-173 | HANDLE REAR | 1 | $27.95 | |
| 14 | 0106-345 | REFLECTOR,RED SNAP-IN | 1 | $21.95 | |
| 17 | 0300-186 | COVER,SEAT | 1 | $365.95 | |
| 19 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 |
