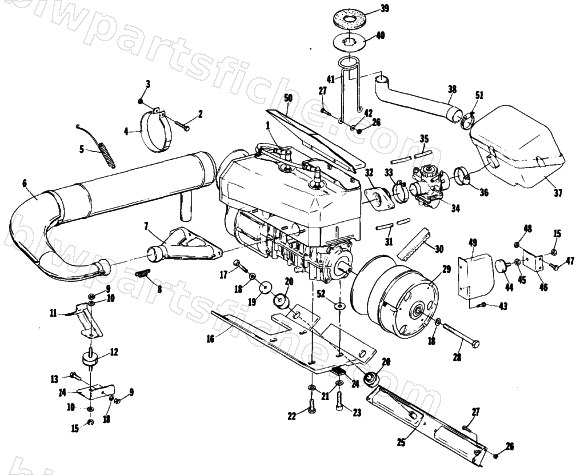

1977 Arctic Cat PANTERA F/C — ENGINE AND RELATED PARTS
1977 PANTERA F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 0112-243 | SPRING,RETAINING -MUFFLER | 1 | $13.95 | |
| 7 | 0112-481 | MANIFOLD EXHAUST | 1 | $163.95 | |
| 8 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 0112-210 | BRKT,MUFFLER | 1 | $62.95 | |
| 13 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 15 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 17 | 8012-220 | SCREW,CAP-HHNLP 3/8-16X.75 G5 Z&Y | 1 | $0.75 | |
| 18 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 20 | 0108-208 | MOUNT,ISOLATION F | 1 | $14.95 | |
| 21 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 22 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 28 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 30 | 0227-020 | BELT,DRIVE | 1 | $61.95 | |
| 31 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 32 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 33 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 35 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 37 | 0109-900 | SILENCER ASSY-AIR INTAKE | 1 | $79.95 | |
| 42 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 43 | 8012-039 | SCREW,CAP-HHNLP 1/4-20X.625 G5 Z&Y | 1 | $0.40 | |
| 45 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 47 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 48 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 51 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 52 | 0123-160 | WASHER,FLAT 1/2 IDX10GA | 1 | $3.85 |
