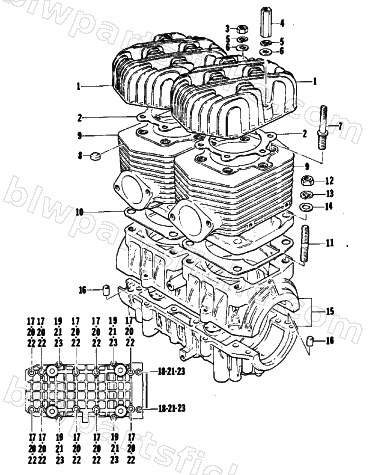

CRANKCASE AND CYLINDER
1977 PANTHER 5000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-131 | GASKET, HEAD-500 F/C | 1 | $43.95 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3002-133 | NUT,HEX LONG M8 | 1 | $4.95 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3002-020 | STUD BOLT M8 | 1 | $4.88 | |
| 9 | 3002-293 | CYLINDER, 5000 | 1 | $897.95 | |
| 12 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 13 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 14 | 3007-410 | WASHER | 1 | $2.75 | |
| 15 | 3002-719 | CRANKCASE ASSY.... | 1 | $239.95 | |
| 16 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 18 | 3002-963 | BOLT,HEX M6X70 | 1 | $3.95 | |
| 21 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 |
