1977 Arctic Cat Z 250 — CONSOLE

1977 Z 250

Scroll / pinch to zoom · drag to pan · double-click resets

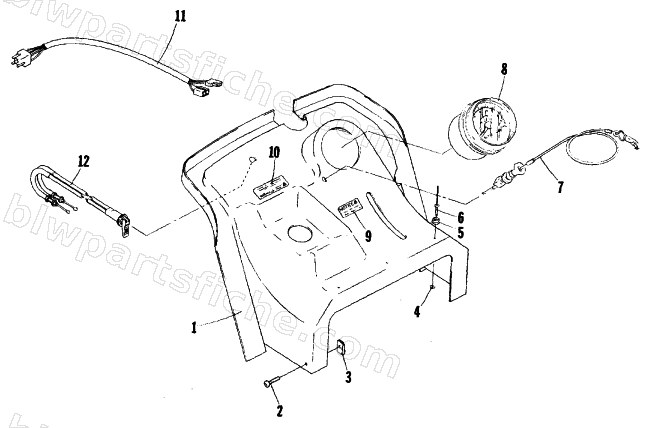

CONSOLE diagram
# Part No. Description Qty Price
2 8008-607 SCREW,MACH-SLTH 1/4-20X.50 G2 BE 1 $0.15
3 0123-539 NUT,SPEED 1/4-20 U-TYPE 1 $0.65
4 0123-352 WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y 1 $0.95
5 0116-074 SNAP,BODY-CUSHION 61-0393-1183 1 $1.64
6 8060-286 RIVET,BLIND-DH SS44 ZINC 1 $0.68
