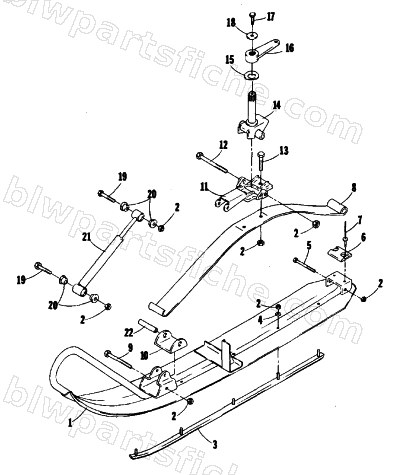

1977 Arctic Cat Z 250 — SKI
1977 Z 250
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 7 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0103-101 | SADDLE,SPRING SLIDE | 1 | $16.95 | |
| 13 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 17 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 19 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 |
