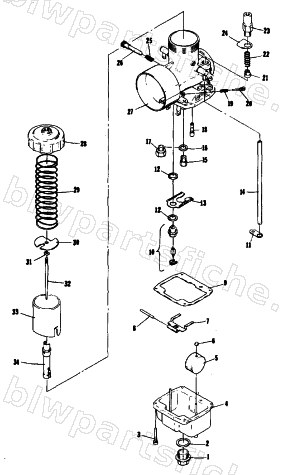

1977 Arctic Cat Z 340 — CARBURETOR
1977 Z 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6505-184 | SCREW, DRAIN | 1 | $13.73 | |
| 2 | 6505-243 | O-RING PLUG CARBURETOR | 1 | $4.95 | |
| 3 | 6505-195 | SCREW | 1 | $1.78 | |
| 4 | 6505-121 | BODY,ASSEMBLY FLOAT CHAMBER | 1 | $93.95 | |
| 5 | 6505-049 | FLOAT | 1 | $29.95 | |
| 6 | 6505-010 | CAP | 1 | $1.64 | |
| 7 | 6505-104 | FLOAT ARM,CARBURETOR | 1 | $19.95 | |
| 8 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 9 | 6505-197 | GASKET | 1 | $13.73 | |
| 10 | 6505-171 | VALVE,NEEDLE | 1 | $50.95 | |
| 11 | 6505-094 | PLATE,HOSE-CARBURETOR | 1 | $10.97 | |
| 12 | 6505-102 | WASHER,VALVE SEAT | 1 | $1.09 | |
| 13 | 6505-191 | PLATE | 1 | $16.49 | |
| 14 | 6505-280 | TUBE, AIR VENT | 1 | $6.34 | |
| 15 | 6505-136 | JET MAIN 310 | 1 | $6.75 | |
| 16 | 6505-006 | WASHER,JET MAIN | 1 | $1.37 | |
| 18 | 6505-278 | JET PILOT 45 | 1 | $5.09 | |
| 19 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 20 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 21 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 22 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 23 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 24 | 6505-193 | WASHER | 1 | $3.16 | |
| 25 | 6505-021 | SPRING | 1 | $3.44 | |
| 26 | 6505-022 | SCREW THROTTLE STOP | 1 | $13.73 | |
| 28 | 6505-194 | TOP MIXING CHAMBER | 1 | $60.95 | |
| 29 | 6505-242 | SPRING, PISTON VALVE CARBURETOR | 1 | $17.87 | |
| 30 | 6505-111 | PLATE,CARBURETOR | 1 | $10.97 | |
| 31 | 6505-008 | E-RING | 1 | $3.71 | |
| 32 | 6505-003 | JET NEEDLE 6DH4 | 1 | $16.49 | |
| 33 | 6505-177 | VALVE, PISTON CA2.0 | 1 | $90.95 | |
| 34 | 6505-155 | NEEDLE JET P-0 159 | 1 | $32.95 |
