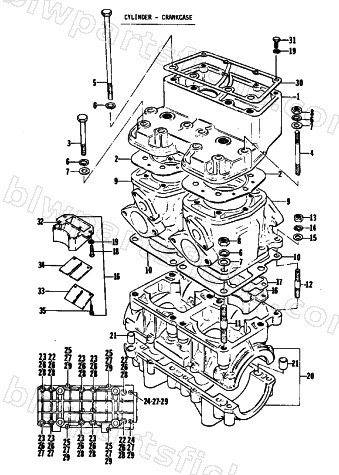

1977 Arctic Cat Z 440 — CRANKCASE AND CYLINDER
1977 Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3003-511 | GASKET,CYLINDER HEAD NON-ASBESTOS | 1 | $67.95 | |
| 3 | 3002-678 | BOLT,HEX M10-1.5X60 G5 | 1 | $5.95 | |
| 4 | 3007-500 | BOLT,ENG MOUNT STUD(L:50) | 1 | $3.16 | |
| 6 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 7 | 3007-410 | WASHER | 1 | $2.75 | |
| 8 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 9 | 3002-365 | CYLINDER | 1 | $626.95 | |
| 9 | 3002-366 | CYLINDER | 1 | $745.95 | |
| 12 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 13 | 3007-416 | NUT | 1 | $2.75 | |
| 14 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 15 | 3423-204 | WASHER | 1 | $1.95 | |
| 16 | 3002-385 | VALVE ASSY REED | 1 | $160.95 | |
| 17 | 3002-386 | GASKET,REED VALVE | 1 | $4.95 | |
| 18 | 3002-349 | SCREW,PN HD M6-1X20 CR | 1 | $1.95 | |
| 19 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 21 | 3002-027 | DOWEL,PIN M13 | 1 | $6.95 | |
| 24 | 3002-398 | BOLT HEX M6-1X65 GR5 ZN | 1 | $1.95 | |
| 25 | 3007-386 | BOLT | 1 | $3.16 | |
| 29 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 33 | 3002-546 | STOPPER,REED VALVE | 1 | $14.95 | |
| 34 | 3002-549 | VALVE, REED | 1 | $11.95 | |
| 35 | 3002-550 | SCREW,PN HD M3-.5X6 W/LW | 1 | $3.16 |
