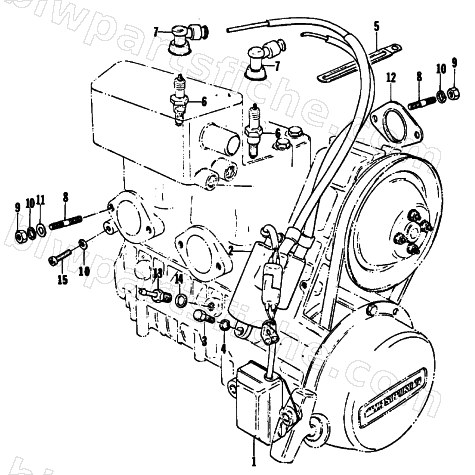

1977 Arctic Cat Z 440 — ELECTRICAL
1977 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-117 | CDI UNIT IGN. | 1 | $927.95 | |
| 2 | 3003-712 | COIL,IGNITION | 1 | $391.95 | |
| 3 | 3007-380 | BOLT | 1 | $3.16 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 6 | 0217-729 | SPARK PLUG, IRIDIUM (BR9EIX) | 1 | $18.95 | |
| 7 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 | |
| 8 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 9 | 3007-416 | NUT | 1 | $2.75 | |
| 10 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 11 | 3423-204 | WASHER | 1 | $1.95 | |
| 12 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 13 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 14 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 |
