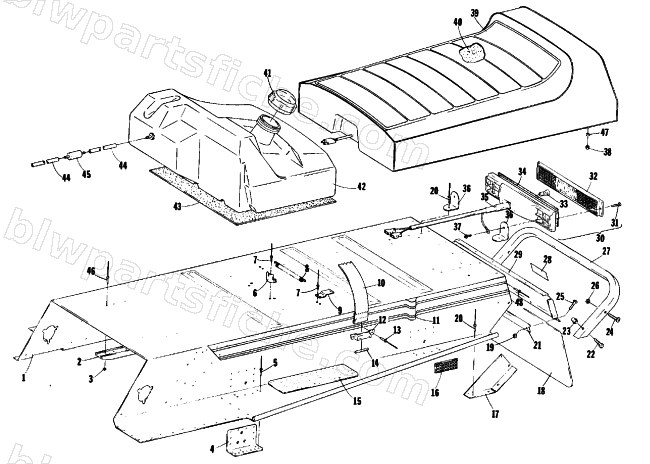

1978 Arctic Cat JAG 3000 — BODY, GAS TANK, TAILLIGHT & SEAT
1978 JAG 3000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 6 | 0116-949 | BRACKET,GAS TANK-MTG | 1 | $4.95 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 0123-808 | SPRING,EXT HOOK-.28DX4 FL | 1 | $3.95 | |
| 13 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 14 | 0106-729 | PIN,RETAINER-HANDGRIP | 1 | $14.95 | |
| 19 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 24 | 8008-674 | SCREW,MACH-SLTH 5/16-18X1.25 G2 Z&Y | 1 | $1.95 | |
| 25 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 26 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 31 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 33 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 34 | 0106-638 | GASKET MAT'L-5FT LENGTH | 1 | $5.59 | |
| 37 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 38 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 41 | 0109-628 | CAP,GAS W/O GAUGE | 1 | $32.95 | |
| 44 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 45 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 46 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 47 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 48 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 |
