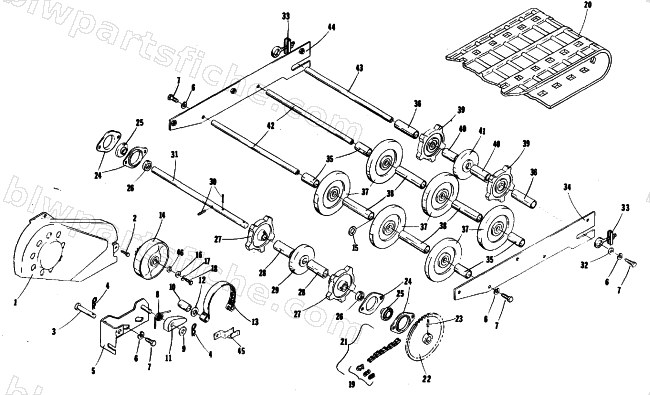

DRIVE, UNDERCARRIAGE AND TRACK
1978 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0302-060 | GUARD,CHAIN | 1 | $72.95 | |
| 2 | 0300-208 | SCREW,SELF TAP-HWH #8 X 3/4 AB BLK | 1 | $0.65 | |
| 3 | 0300-230 | PIN,BRAKE | 1 | $6.95 | |
| 4 | 0300-229 | PIN,HAIR-1/16 X 1-5/16 | 1 | $6.95 | |
| 5 | 0702-753 | BRACKET,BRAKE-PTD BLK | 1 | $37.95 | |
| 6 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 8 | 0300-153 | SPRING,IDLER | 1 | $29.95 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0300-151 | SPACER,BRAKE-PTD BLK | 1 | $16.49 | |
| 11 | 0302-081 | PUCK CHAIN TIGHTENER | 1 | $20.63 | |
| 14 | 0302-086 | CLUTCH,CENTRIFUGAL | 1 | $124.95 | |
| 15 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 16 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 17 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 18 | 8004-040 | SCREW,CAP-HH 1/4-28 X.75 G5 Z&Y | 1 | $0.15 | |
| 19 | 2204-001 | LINK,CONNECTING | 1 | $5.92 | |
| 20 | 0602-927 | TRACK,KITTY CAT-WAVY-2 | 1 | $401.95 | |
| 21 | 0300-122 | CHAIN,ROLLER | 1 | $38.95 | |
| 22 | 0300-156 | SPROCKET,DRIVE | 1 | $96.95 | |
| 23 | 8070-376 | PIN,SPRING-1/4 X 1-1/4 SLOTTED P&O | 1 | $0.26 | |
| 25 | 0302-118 | BEARING,W/LK COLLAR | 1 | $50.95 | |
| 27 | 0300-179 | SPROCKET,DRIVE | 1 | $33.95 | |
| 28 | 0300-152 | SPACER-.64 X.79 X 1.843 TUBE | 1 | $5.95 | |
| 29 | 0300-181 | IDLER,FRONT | 1 | $44.95 | |
| 30 | 8070-316 | PIN,SPRING-3/16 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 32 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 33 | 2081-000 | TRACK ADJUSTER | 1 | $66.95 | |
| 35 | 0302-104 | SPACER,BOGIE WHEEL-OUTSIDE | 1 | $48.95 | |
| 36 | 0300-150 | SPACER-.64 X .79 X 2.562 | 1 | $43.95 | |
| 37 | 0302-101 | BOGIE WHEEL | 1 | $36.95 | |
| 39 | 0300-178 | SPROCKET,IDLER | 1 | $60.95 | |
| 41 | 0300-180 | WHEEL, REAR IDLER | 1 | $53.95 | |
| 45 | 0302-079 | BRKT BRAKE POSITION | 1 | $54.95 |
