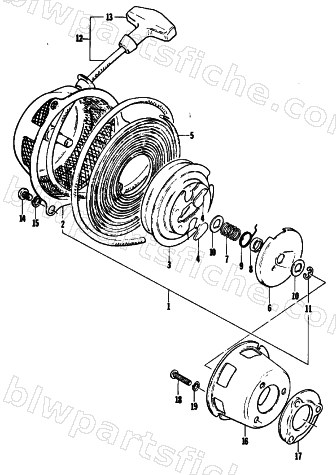

RECOIL STARTER
1978 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-493 | STARTER ASSY,RECOIL | 1 | $166.95 | |
| 4 | 3004-752 | PAWL SET | 1 | $33.95 | |
| 5 | 3002-497 | SPRING,STARTER | 1 | $37.95 | |
| 6 | 3002-498 | PLATE,DRIVE-RECOIL | 1 | $17.87 | |
| 7 | 3002-499 | SPRING,PIVOT SHAFT | 1 | $15.11 | |
| 8 | 3003-317 | COVER,SPRING | 1 | $3.95 | |
| 10 | 3002-502 | WASHER (USE 3004-752 KIT) | 1 | $1.05 | |
| 11 | 3003-318 | E-RING,RECOIL | 1 | $2.75 | |
| 13 | 3002-505 | GRIP RECOIL STARTER | 1 | $28.95 | |
| 14 | 3004-849 | SCREW,M6X10 | 1 | $2.47 | |
| 15 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 18 | 3002-279 | SCREW,M5-8X20 | 1 | $2.95 | |
| 19 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 |
