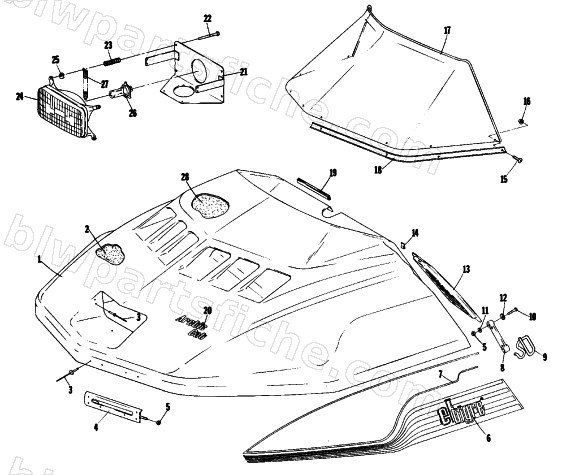

1979 Arctic Cat EL TIGRE L/C — HOOD
1979 EL TIGRE L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 3 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 4 | 0116-993 | HINGE,HOOD-UPPER-WELDMT | 1 | $93.95 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0116-827 | STRAP,LATCH-HOOD | 1 | $14.95 | |
| 9 | 0116-376 | LATCH,HOOD | 1 | $31.95 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 14 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 15 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 16 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 18 | 0106-992 | STRIP WINDSHIELD-RIGHT | 1 | $62.95 | |
| 19 | 0220-014 | TRIM,PLASTIC-HOOD-45.25 | 1 | $43.95 | |
| 20 | 0211-564 | DECAL,ARCTIC CAT | 1 | $13.95 | |
| 23 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 25 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 26 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 27 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 |
