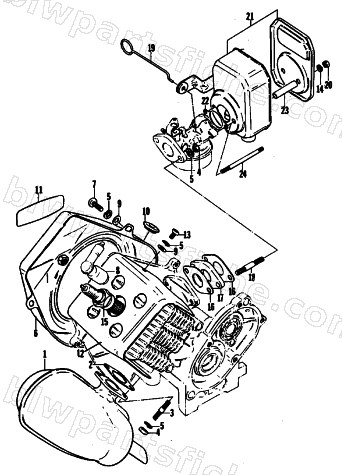

1979 Arctic Cat KITTY CAT — MUFFLER, COWLING AND SILENCER
1979 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-266 | MUFFLER-EXHAUST | 1 | $160.95 | |
| 2 | 3004-268 | GASKET, EXHAUST | 1 | $13.95 | |
| 3 | 3004-850 | BOLT,STUD-M6X16 | 1 | $2.75 | |
| 4 | 0693-489 | NUT,6MM | 1 | $3.95 | |
| 5 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 6 | 3004-968 | COVER, COOLING FAN | 1 | $87.95 | |
| 7 | 3007-511 | SCREW | 1 | $2.47 | |
| 8 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 | |
| 9 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 10 | 3002-461 | PLUG,M22 RUBBER GROMMET | 1 | $2.95 | |
| 13 | 3004-849 | SCREW,M6X10 | 1 | $2.47 | |
| 14 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 15 | 0217-027 | SPARK PLUG BR6HS | 1 | $4.54 | |
| 16 | 3004-266 | GASKET, CARBURETOR | 1 | $6.75 | |
| 17 | 3002-484 | INSULATOR,CARBURETOR | 1 | $20.95 | |
| 18 | 3004-985 | STUD BOLT,6X20 | 1 | $3.95 | |
| 19 | 3002-485 | ROD,CHOKE VALVE | 1 | $30.95 | |
| 20 | 3007-572 | NUT,5MM | 1 | $2.47 | |
| 21 | 3002-486 | SILENCER ASSY,AIR INTAKE | 1 | $82.95 | |
| 22 | 3004-267 | GASKET, AIR CLEANER | 1 | $12.35 | |
| 23 | 3005-132 | SPACER(WASHER)5MM | 1 | $4.95 |
