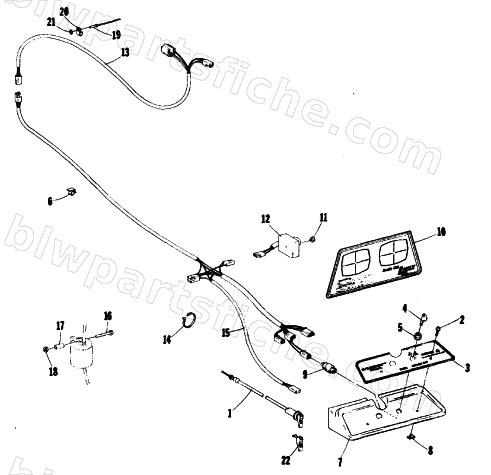

1979 Arctic Cat LYNX TWIN — CONSOLE AND WIRING
1979 LYNX TWIN
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 4 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 5 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 6 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 8 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 9 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 22 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 |
