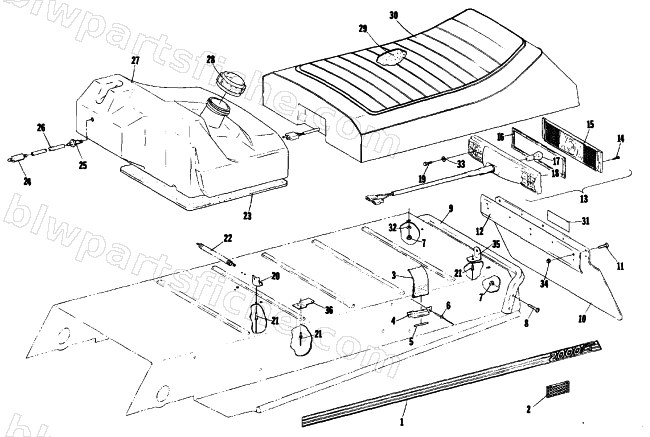

1979 Arctic Cat LYNX TWIN — TAILLIGHT, GAS TANK AND SEAT
1979 LYNX TWIN
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 0106-729 | PIN,RETAINER-HANDGRIP | 1 | $14.95 | |
| 6 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8007-614 | SCREW,MACH-CRTH 1/4-20X1.25 G2 BE | 1 | $0.25 | |
| 11 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 14 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 16 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 17 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 19 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 20 | 0116-949 | BRACKET,GAS TANK-MTG | 1 | $4.95 | |
| 21 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 22 | 0123-808 | SPRING,EXT HOOK-.28DX4 FL | 1 | $3.95 | |
| 24 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 25 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 26 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 28 | 0109-628 | CAP,GAS W/O GAUGE | 1 | $32.95 | |
| 32 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 34 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
