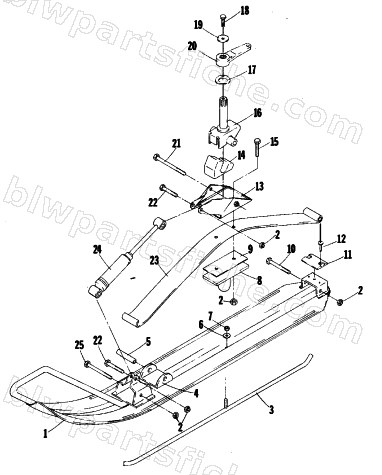

1979 Arctic Cat PANTERA — SKI
1979 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 3 | 1703-529 | SKAG-PTD BLK | 1 | $19.25 | |
| 4 | 0103-101 | SADDLE,SPRING SLIDE | 1 | $16.95 | |
| 6 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0103-339 | BLOCK, BUMP OUT | 1 | $49.95 | |
| 12 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 13 | 0103-306 | SADDLE SKI-RH WELDMT | 1 | $37.95 | |
| 13 | 0103-307 | SADDLE SKI-LH WEDMT | 1 | $43.95 | |
| 15 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 18 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 20 | 0110-984 | ARM, SPINDLE-RH | 1 | $49.95 | |
| 20 | 0110-985 | ARM,SPINDLE-LEFT | 1 | $49.95 | |
| 22 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 25 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 |
