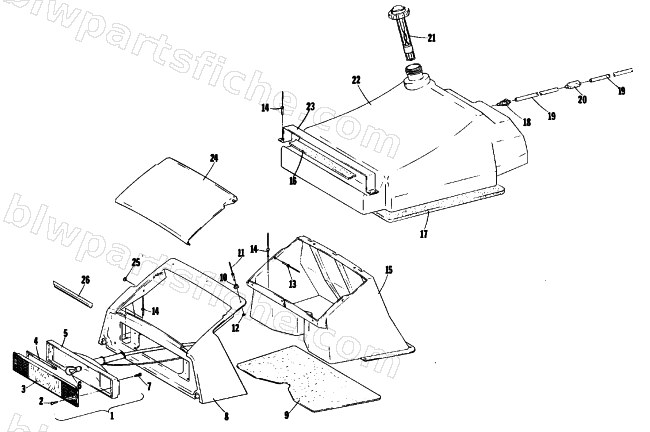

1979 Arctic Cat PANTERA — TOOLBOX AND FUEL SYSTEM
1979 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 4 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 6 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 7 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 10 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 11 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 12 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 13 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 14 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 15 | 0106-745 | TOOL BOX | 1 | $129.95 | |
| 18 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 19 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 20 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 24 | 0106-692 | DOOR,REAR SHROUD | 1 | $62.95 | |
| 25 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
