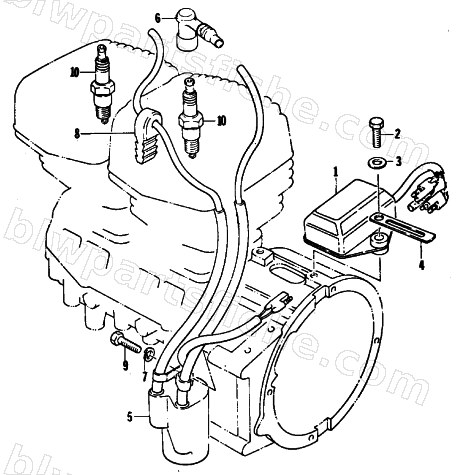

1980 Arctic Cat JAG 3000 F/A — ELECTRICAL
1980 JAG 3000 F/A
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3003-029 | BOLT, HEX,M6X20 | 1 | $4.54 | |
| 3 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 5 | 3003-221 | COIL,IGNITION | 1 | $379.95 | |
| 6 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 | |
| 7 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 9 | 3004-641 | BOLT | 1 | $1.79 | |
| 10 | 0217-034 | SPARK PLUG BR8ES (SCREW CAP) | 1 | $4.54 |
