1980 Arctic Cat JAG 3000 F/C — OIL PUMP
1980 JAG 3000 F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

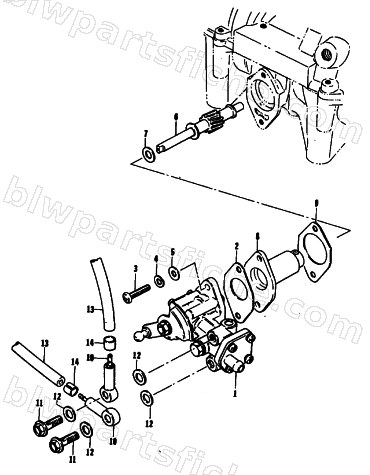

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-768 | OIL PUMP ASSY | 1 | $513.95 | |
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 4 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 5 | 3000-260 | WASHER,5MM | 1 | $0.26 | |
| 6 | 3002-770 | GEAR,OIL PUMP DRIVEN | 1 | $94.95 | |
| 7 | 3002-749 | SHIM,M7 | 1 | $2.06 | |
| 8 | 3003-749 | RETAINER,OIL PUMP | 1 | $120.95 | |
| 9 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3002-753 | UNION CHECK VALVE | 1 | $14.95 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 13 | 3003-938 | HOSE, 600 MM | 1 | $16.49 | |
| 14 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 |
