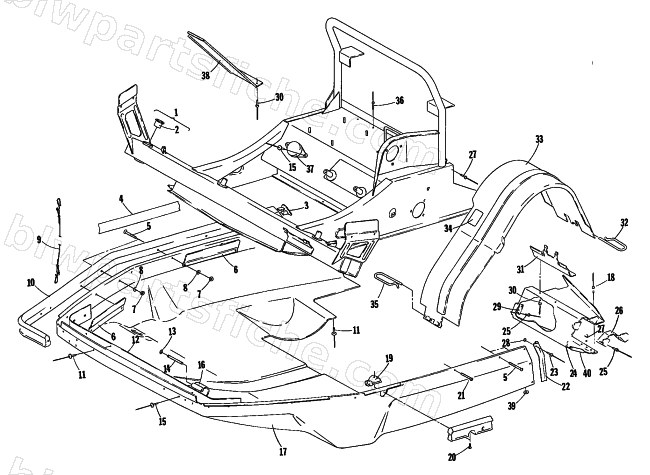

1980 Arctic Cat PANTERA ELECTRIC START — BELLY PAN AND FRONT FRAME
1980 PANTERA ELECTRIC START
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0117-497 | TAPE,BUMPER 50 FT ROLL | 1 | $140.95 | |
| 5 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0114-483 | BUMPER,FRONT | 1 | $203.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 14 | 0107-838 | PIN HINGE | 1 | $41.95 | |
| 15 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 17 | 0117-226 | BELLY PAN | 1 | $472.95 | |
| 18 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 20 | 0124-014 | SCREW,10X3/4 SELF TAP | 1 | $0.25 | |
| 21 | 0123-190 | SCREW,MACH FT HD 1/4-20X1-3/8 | 1 | $0.45 | |
| 22 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 23 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 27 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 28 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 30 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 31 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 32 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 35 | 8001-056 | SCREW,CAP-HH 1/4-20X5.0 G2 Z&Y | 1 | $1.09 | |
| 36 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 39 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
