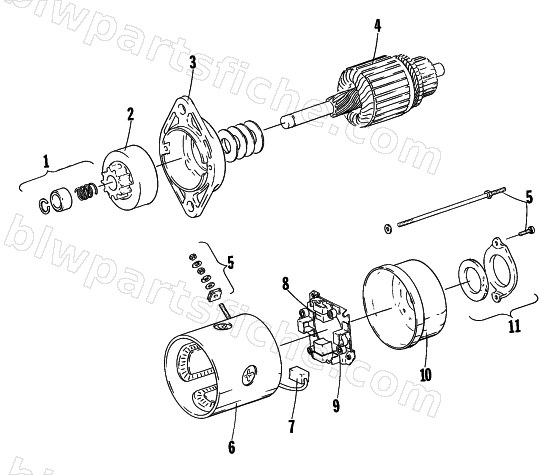

1980 Arctic Cat PANTERA MANUAL START — ELECTRIC START MOTOR
1980 PANTERA MANUAL START
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0745-017 | STARTER MOTOR ASS'Y-CCW R | 1 | $514.95 | |
| 1 | 0745-012 | STOPPER, PINION | 1 | $17.95 | |
| 2 | 0145-217 | PINION,STARTER MOTOR 176 | 1 | $191.95 | |
| 7 | 0145-071 | BRUSH,POSITIVE STARTER | 1 | $25.95 |
