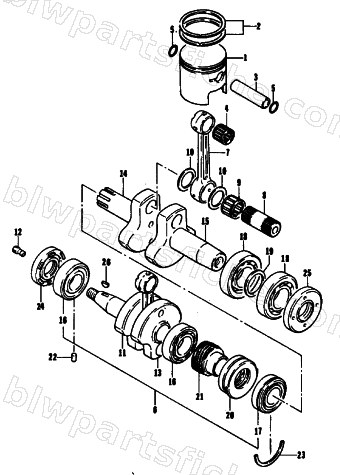

1980 Arctic Cat TRAIL CAT 3000 — PISTON AND CRANKSHAFT
1980 TRAIL CAT 3000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-771 | PISTON ASSY, 340 FC | 1 | $307.95 | |
| 2 | 3004-825 | RING SET 340-370 F/C | 1 | $100.95 | |
| 3 | 3006-400 | PIN,PISTON | 1 | $19.25 | |
| 4 | 3002-805 | BEARING,PISTON PIN,ROLLER,M16X21X19.6 | 1 | $37.95 | |
| 5 | 3002-041 | CIRCLIP,PISTON PIN,M16 | 1 | $1.95 | |
| 6 | 3003-492 | CRANKSHAFT ASSY | 1 | $1,175.95 | |
| 7 | 3002-762 | ROD,CONNECTING | 1 | $241.95 | |
| 8 | 3005-947 | PIN, CRANK | 1 | $67.95 | |
| 9 | 3003-170 | BEARING, ROD,ROLLER,M22,28,15.8 | 1 | $43.95 | |
| 10 | 3005-166 | WASHER, CRANK PIN BEARING,22MM | 1 | $3.95 | |
| 11 | 3005-556 | CRANKSHAFT,RH | 1 | $486.95 | |
| 12 | 3002-721 | BUSHING,TACHOMETER | 1 | $30.95 | |
| 13 | 3002-765 | WHEEL,CRANKSHAFT | 1 | $251.95 | |
| 14 | 3002-766 | CRANKSHAFT,MIDDLE | 1 | $443.95 | |
| 15 | 3005-351 | CRANKSHAFT, LH | 1 | $665.95 | |
| 16 | 3002-030 | BEARING,CRANKSHAFT,BALL,M25X55X15 | 1 | $89.95 | |
| 18 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 19 | 3005-168 | SHIM,30MM | 1 | $6.95 | |
| 20 | 3002-751 | OIL SEAL KIT,M30 | 1 | $110.95 | |
| 21 | 3002-769 | GEAR OIL PUMP DRIVE | 1 | $30.95 | |
| 22 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 23 | 3002-042 | C RING M55 | 1 | $8.95 | |
| 25 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 26 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
