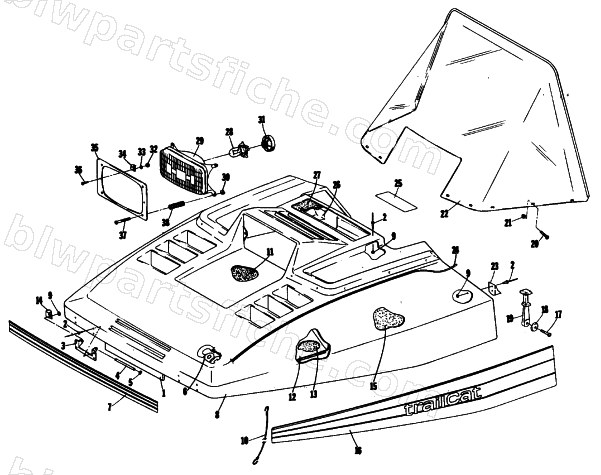

HOOD
1980 TRAIL CAT 4000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 3 | 0117-132 | HINGE HOOD UPPER | 1 | $13.73 | |
| 3 | 0117-133 | HINGE HOOD UPPER LH | 1 | $13.73 | |
| 4 | 0107-838 | PIN HINGE | 1 | $41.95 | |
| 5 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 11 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 14 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 16 | 0211-465 | DECAL,HOOD SIDE LH | 1 | $104.95 | |
| 17 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 18 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 19 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 20 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 21 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 28 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 30 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 31 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 32 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 33 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 35 | 0116-867 | HEADLIGHT BEZEL | 1 | $47.95 | |
| 36 | 8009-430 | SCREW,MACH-CRPH 10-24X.75 G2 Z&BLK | 1 | $0.95 | |
| 38 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 |
