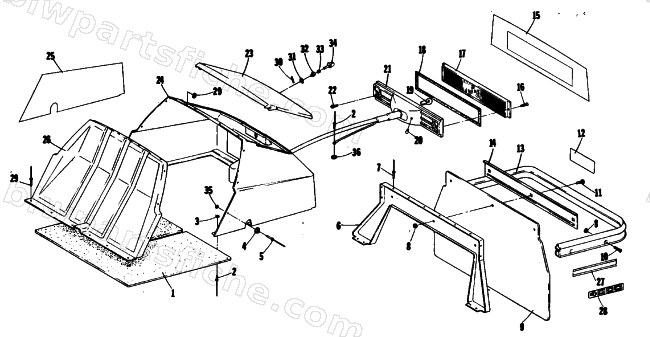

1980 Arctic Cat TRAIL CAT 4000 — TAILLIGHT, TOOLBOX, REAR BUMPER
1980 TRAIL CAT 4000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0117-137 | PAD,TOOLBOX | 1 | $5.95 | |
| 2 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 3 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 4 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 5 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 11 | 8011-070 | BOLT,CRG 1/4-20X.75 GR1 BLK | 1 | $0.26 | |
| 16 | 0123-920 | SCREW,PAN HD 8X5/8 | 1 | $0.15 | |
| 18 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 19 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 20 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 | |
| 22 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 23 | 0115-344 | LID,TOOLBOX | 1 | $58.95 | |
| 26 | 0117-070 | TOOLBOX,FRONT | 1 | $6.95 | |
| 27 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 29 | 0123-979 | RING RETAINING .25 | 1 | $0.55 | |
| 30 | 8070-160 | PIN,SPRING-3/32 X 3/4 SLOTTED P&O | 1 | $0.26 | |
| 31 | 0123-980 | RING,RETAINING .50 | 1 | $1.95 | |
| 32 | 0115-343 | LATCH BASE | 1 | $5.65 | |
| 33 | 0115-340 | SPRING | 1 | $5.95 | |
| 34 | 0115-341 | LATCH HEAD | 1 | $6.75 | |
| 35 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 36 | 8052-122 | WASHER,LOCK-NO.8 INTL TOOTH TYP A Z&Y | 1 | $0.40 |
