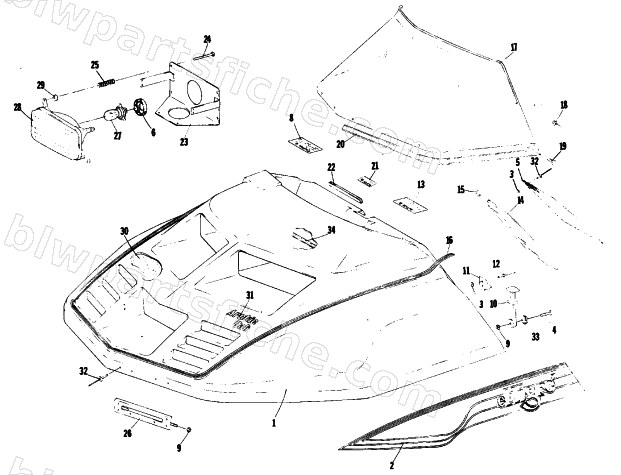

1981 Arctic Cat EL TIGRE F/C — HOOD
1981 EL TIGRE F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0212-147 | DECAL,HOOD LH | 1 | $81.95 | |
| 3 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 4 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 6 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 13 | 0212-154 | DECAL,ENGINE CAUTION | 1 | $18.95 | |
| 15 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 18 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 19 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 20 | 0106-992 | STRIP WINDSHIELD-RIGHT | 1 | $62.95 | |
| 22 | 0220-014 | TRIM,PLASTIC-HOOD-45.25 | 1 | $43.95 | |
| 25 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 26 | 0116-993 | HINGE,HOOD-UPPER-WELDMT | 1 | $93.95 | |
| 27 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 29 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 32 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 33 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 |
