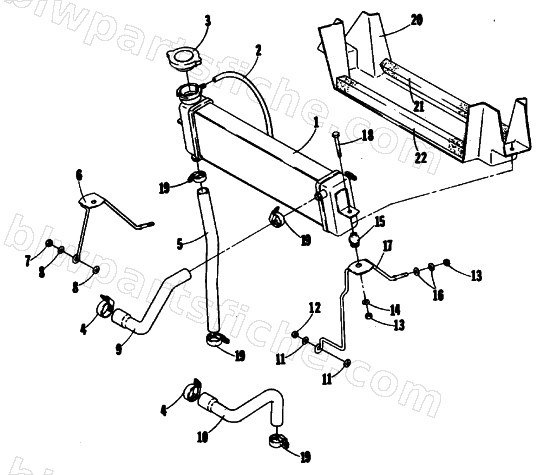

COOLING SYSTEM
1981 EL TIGRE L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 4 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 7 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 15 | 0123-868 | MOUNT RUBBER-RADIATOR | 1 | $57.95 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0115-079 | BRKT,RADIATOR-LEFT | 1 | $17.95 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 22 | 0617-035 | FOAM SEAL, AIRBOX TO GASTANK | 1 | $23.95 |
