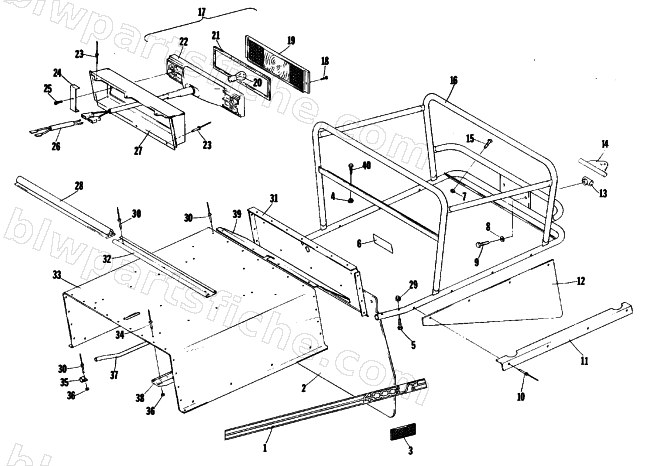

1981 Arctic Cat JAG L/T — BODY EXTENSION
1981 JAG L/T
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 7 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 9 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 10 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 14 | 0120-320 | HITCH WELDMENT-{ZINC} HITCH KITS | 1 | $37.95 | |
| 15 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 18 | 0123-920 | SCREW,PAN HD 8X5/8 | 1 | $0.15 | |
| 20 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 21 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 23 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 25 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 30 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 34 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 36 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 40 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 |
