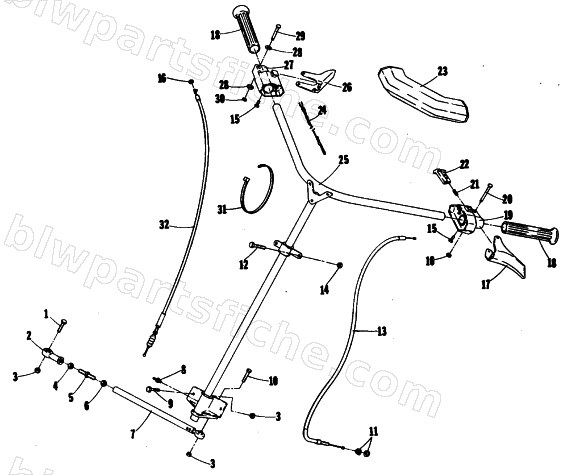

STEERING
1981 JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 5 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 6 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 8 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 9 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 11 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 12 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 13 | 0115-188 | CABLE,BRAKE | 1 | $133.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0124-047 | SCREW,PH,#6-32 SLF TAP | 1 | $0.15 | |
| 16 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 17 | 0115-280 | LEVER,BRAKE | 1 | $37.95 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 19 | 0117-287 | SWITCH,BRAKE | 1 | $192.95 | |
| 20 | 0123-927 | PIN,1/4 DIA-BRAKE HANDLE | 1 | $6.34 | |
| 21 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 22 | 0115-278 | ACTUATOR PARK BRKE | 1 | $10.97 | |
| 23 | 0117-025 | PAD HANDLEBAR | 1 | $74.95 | |
| 27 | 0709-040 | SWITCH,THROTTLE ASSY | 1 | $208.95 | |
| 29 | 0123-918 | PIN,LEVER | 1 | $15.11 | |
| 30 | 0123-810 | RING RETAINING 3/16 EXT | 1 | $0.45 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 0187-060 | CABLE,THROTTLE | 1 | $117.95 |
