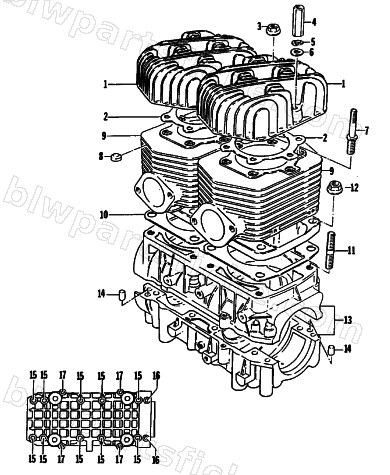

1981 Arctic Cat PANTERA ES — CRANKCASE AND CYLINDER
1981 PANTERA ES
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-131 | GASKET, HEAD-500 F/C | 1 | $43.95 | |
| 3 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 4 | 3002-133 | NUT,HEX LONG M8 | 1 | $4.95 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3002-020 | STUD BOLT M8 | 1 | $4.88 | |
| 9 | 3002-293 | CYLINDER, 5000 | 1 | $897.95 | |
| 10 | 3002-367 | R/B 3003-505 | 1 | $3.25 | |
| 12 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 13 | 3002-929 | CRANKCASE ASSY (500 FC) | 1 | $977.95 | |
| 14 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 15 | 3002-930 | BOLT,HEX FLGD M8X75 ZN | 1 | $3.95 | |
| 16 | 3002-931 | BOLT,HEX FLGD M6X70 ZN | 1 | $0.85 | |
| 17 | 3007-411 | BOLT | 1 | $3.16 |
