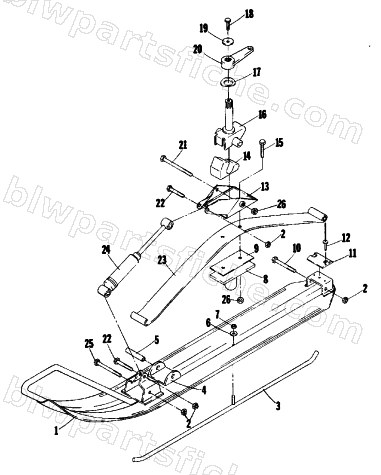

1981 Arctic Cat PANTERA — SKI
1981 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 3 | 1703-528 | SKAG-PTD BLK | 1 | $33.95 | |
| 4 | 0103-101 | SADDLE,SPRING SLIDE | 1 | $16.95 | |
| 6 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0103-339 | BLOCK, BUMP OUT | 1 | $49.95 | |
| 12 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 13 | 0103-344 | SADDLE, RIGHT | 1 | $91.95 | |
| 13 | 0103-345 | SADDLE, LEFT | 1 | $107.95 | |
| 15 | 0124-052 | HHCS,7/16-14X1 1/2 GR8 | 1 | $25.95 | |
| 16 | 0103-324 | SPINDLE WELDMENT | 1 | $219.95 | |
| 18 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 22 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 25 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 26 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 |
