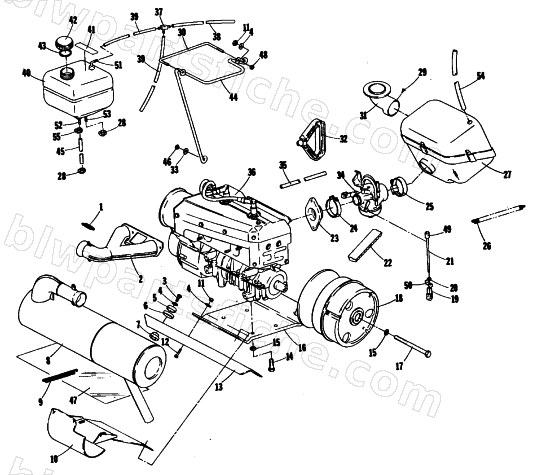

ENGINE AND RELATED PARTS
1981 PANTHER WEST
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 2 | 0112-577 | MANIFOLD,EXHAUST | 1 | $252.95 | |
| 3 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 4 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 5 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 6 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 7 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 9 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 10 | 0112-609 | MUFFLER BRKT WLDMT | 1 | $69.95 | |
| 11 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 12 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 13 | 0107-937 | SUPPORT ANGLE-ENGINE | 1 | $84.95 | |
| 14 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 15 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 16 | 0108-270 | PLATE,ENGINE | 1 | $101.95 | |
| 17 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 18 | 0225-146 | R/B 0725-051 | 1 | $320.75 | |
| 19 | 6505-338 | JOINT | 1 | $24.77 | |
| 20 | 6505-340 | NUT | 1 | $1.09 | |
| 22 | 0227-019 | BELT, DRIVE | 1 | $62.95 | |
| 26 | 0109-839 | SPRING,EXTENSION-24 | 1 | $13.73 | |
| 28 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 29 | 0123-995 | RIVET,EXPANSION | 1 | $1.95 | |
| 31 | 0115-347 | TUBE INLET,AIR | 1 | $13.95 | |
| 32 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 33 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 35 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 37 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 38 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 42 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 43 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 45 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 46 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 47 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 | |
| 48 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 49 | 3002-945 | SPACER OIL ROD | 1 | $2.95 | |
| 50 | 6505-430 | LOCK PLATE OIL PUMP ROD | 1 | $2.95 | |
| 52 | 0115-739 | FITTING,OIL TANK OUTLET | 1 | $5.95 |
