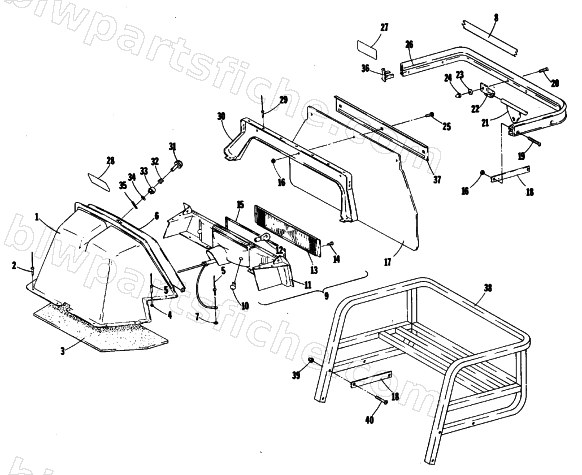

1981 Arctic Cat PANTHER WEST — TAILLIGHT, TOOLBOX, REAR BUMPER
1981 PANTHER WEST
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-303 | SHROUD,TOOLBOX-BLK-ASSY | 1 | $128.95 | |
| 2 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 7 | 8052-122 | WASHER,LOCK-NO.8 INTL TOOTH TYP A Z&Y | 1 | $0.40 | |
| 10 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 | |
| 12 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 14 | 0123-920 | SCREW,PAN HD 8X5/8 | 1 | $0.15 | |
| 15 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 8011-070 | BOLT,CRG 1/4-20X.75 GR1 BLK | 1 | $0.26 | |
| 29 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 30 | 0114-901 | PLATE, END | 1 | $103.95 | |
| 31 | 0115-341 | LATCH HEAD | 1 | $6.75 | |
| 32 | 0115-340 | SPRING | 1 | $5.95 | |
| 33 | 0115-343 | LATCH BASE | 1 | $5.65 | |
| 34 | 0123-980 | RING,RETAINING .50 | 1 | $1.95 | |
| 35 | 8070-158 | PIN,SPRING-3/32 X 5/8 SLOTTED P&O | 1 | $0.35 |
