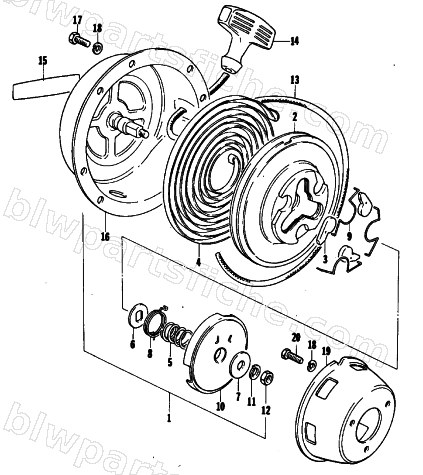

RECOIL STARTER
1981 TRAIL CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-299 | STARTER ASSY RECOILING | 1 | $436.95 | |
| 2 | 3002-301 | ROLLER, STARTER | 1 | $85.95 | |
| 3 | 3004-730 | RATCHET SET | 1 | $79.95 | |
| 4 | 3001-077 | SPRING,RECOIL | 1 | $54.95 | |
| 7 | 3002-302 | WASHER,PIVOT SHAFT | 1 | $8.95 | |
| 8 | 3001-081 | SPRING,RETURN | 1 | $18.95 | |
| 10 | 3001-084 | PLATE,DRIVE | 1 | $20.95 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-684 | NUT,10MM | 1 | $3.16 | |
| 13 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 16 | 3002-300 | CASE STARTER | 1 | $125.95 | |
| 17 | 3007-374 | BOLT | 1 | $3.16 | |
| 18 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 19 | 3002-257 | PULLEY,STARTER | 1 | $79.95 |
