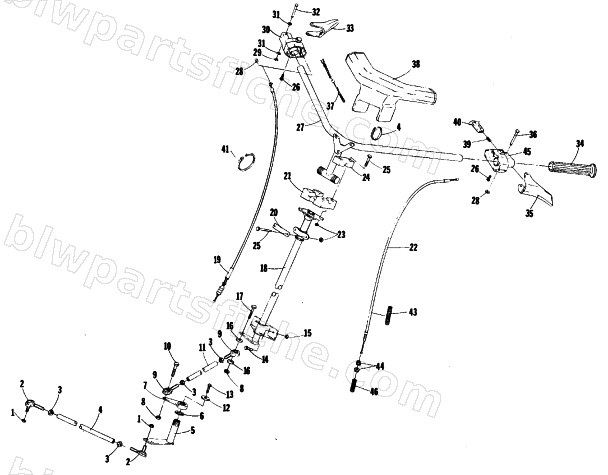

1981 Arctic Cat TRAIL CAT — STEERING
1981 TRAIL CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 2 | 0103-273 | END TIE ROD W/STUD | 1 | $61.95 | |
| 3 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 4 | 0105-330 | TIE ROD,15.625 IN | 1 | $53.95 | |
| 7 | 0105-334 | ARM,SPINDLE-MACH | 1 | $49.95 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 0105-328 | JOINT BALL | 1 | $68.95 | |
| 13 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 14 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 17 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 19 | 0187-063 | CABLE,THROTTLE | 1 | $109.95 | |
| 21 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 22 | 0115-183 | CABLE,BRAKE | 1 | $70.95 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 25 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 0124-047 | SCREW,PH,#6-32 SLF TAP | 1 | $0.15 | |
| 28 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 29 | 0123-810 | RING RETAINING 3/16 EXT | 1 | $0.45 | |
| 30 | 0709-040 | SWITCH,THROTTLE ASSY | 1 | $208.95 | |
| 32 | 0123-918 | PIN,LEVER | 1 | $15.11 | |
| 34 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 35 | 0115-280 | LEVER,BRAKE | 1 | $37.95 | |
| 36 | 0123-927 | PIN,1/4 DIA-BRAKE HANDLE | 1 | $6.34 | |
| 39 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 40 | 0115-278 | ACTUATOR PARK BRKE | 1 | $10.97 | |
| 41 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 42 | 0636-058 | KIT, HANDLEBAR WARMER | 1 | $52.95 | |
| 43 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 44 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 45 | 0117-287 | SWITCH,BRAKE | 1 | $192.95 | |
| 46 | 0123-407 | SPRING,COMPRESSION 5/16IDX3 | 1 | $0.45 |
