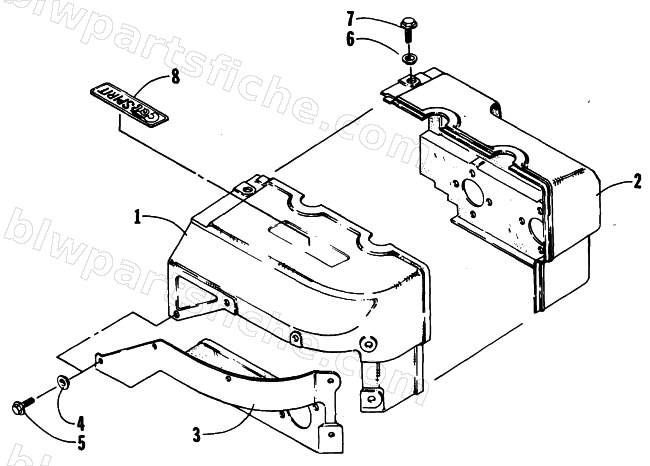

1985 Arctic Cat COUGAR SPECIAL EDITION — CYLINDER COWLING
1985 COUGAR SPECIAL EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-199 | COWLING, UPPER | 1 | $198.95 | |
| 2 | 3003-139 | COWLING, REAR | 1 | $112.95 | |
| 4 | 3423-264 | WASHER,LOCK,6MM | 1 | $2.61 | |
| 5 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 6 | 3003-142 | WASHER, COWLING,8MM | 1 | $1.64 | |
| 7 | 3007-432 | BOLT | 1 | $3.44 |
