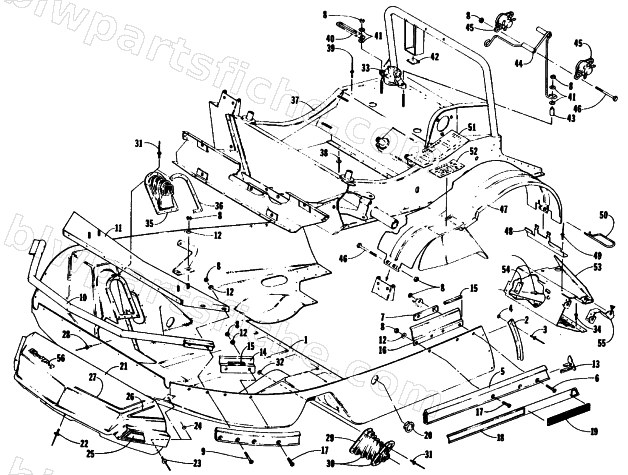

1985 Arctic Cat COUGAR — BELLY PAN AND FRONT FRAME
1985 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-048 | BELLY PAN,ROUTED | 1 | $921.95 | |
| 2 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 3 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0706-029 | BUMPER,LH FRONT | 1 | $116.95 | |
| 5 | 0706-026 | BUMPER, RH FRONT | 1 | $167.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0706-019 | BUMPER, FRONT | 1 | $42.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 18 | 0212-568 | DECAL, FR BUMP RH | 1 | $65.95 | |
| 18 | 0212-569 | DECAL, FR BUMP LH | 1 | $53.95 | |
| 21 | 0605-075 | BALL JOINT,STEERING 3/8-24 RH | 1 | $79.95 | |
| 22 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 23 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 24 | 8050-122 | WASHER,FLAT- #8 X .438 X .049 Z&Y | 1 | $3.85 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 30 | 0605-010 | RING, STEERING | 1 | $24.77 | |
| 31 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 33 | 0115-631 | FUEL PUMP(DF52-89) | 1 | $158.95 | |
| 34 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 36 | 0603-053 | RING, SUSPENS BT | 1 | $23.39 | |
| 37 | 0707-015 | FRAME,FRONT | 1 | $722.95 | |
| 38 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 39 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 41 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 47 | 0707-007 | SHIELD, CLUTCH | 1 | $101.95 | |
| 48 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 49 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 50 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 53 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 |
